(ファイル公開停止)修学支援新制度のためGPA分布表作成マクロを改変しました。

文科省のQ&Aに対応していなかったので、ファイルの公開を停止しています。

kakichirashi.hatenadiary.jp

 前回GPA分布表作成マクロを作成したところですが、文科省への事前相談において下位25%以下の人数を分布図中に明記するように指摘された旨の話を耳にしました。この指摘には前回作成したVer1では対応できないため、若干コードを加筆し、下位25%の人数を明記できるようにしたVer2を作成しました。

※GPA下位25%の算出方法が明らかになり当該マクロの算出方法と異なっていたため、公開を中止します。

f:id:samidaretaro:20190701210506p:plain

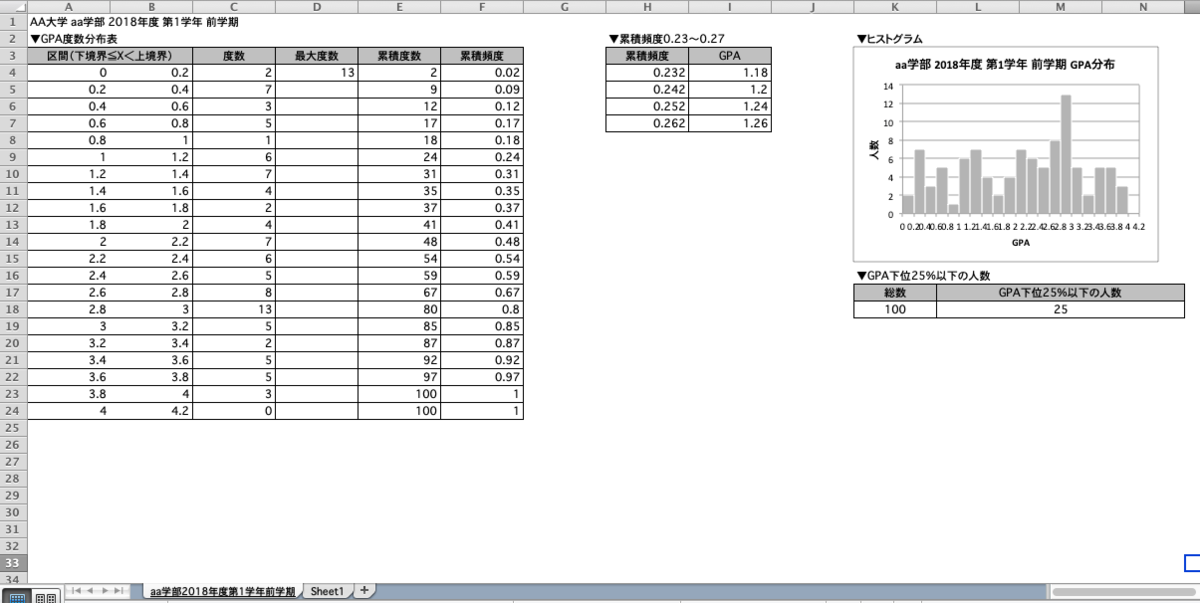

 ヒストグラムの下に、sheet1E列に入力されたGPAの入力数(全員の人数)と累積頻度0.25以下の数(下位25%以下の人数)を明記するようにしました。使用方法はVer1と同様です。

 なお、私はこの分布表を根拠資料として使用していませんので、実際に申請に使用できるかどうかはわかりません。各機関でご判断願います。

Sub HISTOGRAM()



    Dim Target As Range

    Dim Target2 As Range

    Dim Kikan As String

    Dim Gakubu As String

    Dim Nendo As Integer

    Dim Gakunen As Integer

    Dim Gakki As String

    Dim Tmp(1 To 3)

    Dim sh As Object

    Dim shname2 As String

    Dim num, NameLen As Integer

    Dim n As Integer

    Dim rank() As Double

    Dim i

    Dim j



    On Error GoTo Error         ' エラー処理



    Application.ScreenUpdating = False



    Set Target = Range("E:E")   ' データ範囲を格納

    Kikan = Cells(1, 2).Value   ' 機関名を取得

    Gakubu = Cells(2, 2).Value  ' 学部等名を取得

    Nendo = Cells(3, 2).Value   ' 年度を取得

    Gakunen = Cells(4, 2).Value ' 学年を取得

    Gakki = Cells(5, 2).Value   ' 学期を取得

    n = Cells(Rows.Count, "E").End(xlUp).Row    ' E列の最後の行数を取得

    shname = Gakubu & Nendo & "年度第" & Gakunen & "学年" & Gakki   ' シート名を設定

    NameLen = Len(shname)

    num = 2



    ReDim rank(n)           ' nを格納



    With WorksheetFunction  ' ヒストグラムの要素の幅,最小値,最大値を設定

        Tmp(1) = 0.2        ' ヒストグラムの要素の幅を設定

        Tmp(2) = 0          ' ヒストグラムの要素の最小値値を設定

        Tmp(3) = 4.2        ' ヒストグラムの要素の最大値を設定

        Columns("F").Clear

        For i = 1 To n      ' %順位を算出しSheet1に表示

            rank(i) = .PercentRank(Range("E:E"), Cells(i, 5), 3)

            Cells(i, 6).Value = rank(i)

        Next

    End With



    Set Target2 = Range("F:F")              ' sheet1の順位を格納



    Range("F:F").Borders.LineStyle = True   ' %順位に罫線を引く



Step1:                                      ' シートを追加する際に同一名称のシートが既にあれば名称の後部にナンバリング

    For Each sh In Worksheets

        If sh.Name = shname Then

            shname = Left(shname, NameLen) & "(" & num & ")"

            num = num + 1

            GoTo Step1

        End If

    Next sh



    Sheets.Add.Name = shname    ' シートを追加



    ' 度数分布表の作成

    Cells(1, 1).Value = Kikan & " " & Gakubu & " " & Nendo & "年度 第" & Gakunen & "学年" & " " & Gakki

    Cells(2, 1).Value = "▼GPA度数分布表"

    Cells(3, 1).Value = "区間(下境界≦X<上境界)"

    Cells(3, 3).Value = "度数"

    Cells(3, 4).Value = "最大度数"

    Cells(3, 5).Value = "累積度数"

    Cells(3, 6).Value = "累積頻度"

    Range(Cells(3, 1), Cells(3, 6)).Interior.ColorIndex = 15



    With WorksheetFunction      ' 表に数値を入力

        For i = 0 To (Tmp(3) - Tmp(2)) / Tmp(1) - 1

            Cells(i + 4, 1).Value = Tmp(2) + Tmp(1) * i

            Cells(i + 4, 2).Value = Tmp(2) + Tmp(1) * (i + 1)

            Cells(i + 4, 3) = .CountIfs(Target, ">=" & Cells(i + 4, 1).Value, Target, "<" & Cells(i + 4, 2).Value)

            Cells(i + 4, 5) = .Sum(Range(Cells(4, 3), Cells(i + 4, 3)))

            Cells(i + 4, 6) = Cells(i + 4, 5) / .Count(Target)

        Next

        Cells(4, 4).Value = .Max(Range(Cells(4, 3), Cells(i + 4, 3)))

    End With



    ' 度数分布表の書式設定

    With Range("A3:B3")

        .Merge

        .HorizontalAlignment = xlCenter

        .ShrinkToFit = True

    End With

    Range("C3:F3").HorizontalAlignment = xlCenter

    Range(Cells(3, 1), Cells(i + 3, 6)).Borders.LineStyle = True

    Range(Cells(3, 1), Cells(i + 3, 2)).Borders(xlInsideVertical).LineStyle = False

    With Range(Cells(4, 1), Cells(i + 3, 1)).HorizontalAlignment = xlRight

    End With

    With Range(Cells(4, 2), Cells(i + 3, 2))

        .NumberFormatLocal = "G/標準"

        .HorizontalAlignment = xlRight

    End With

    ActiveWindow.DisplayGridlines = False





    Range("H2").Value = "▼累積頻度0.23〜0.27"  ' 累積頻度表の箇所がわかるように表示

    ' グラフ作成

    Range(Cells(3, 3), Cells(i + 3, 4)).Select

    ActiveSheet.Shapes.AddChart(xlColumnClustered).Select ' 集合縦棒グラフを作成



    With ActiveChart

        .HasLegend = False                      ' 凡例除去

        .ChartGroups(1).GapWidth = 0            ' 間隔=0

        .HasTitle = True                        ' グラフタイトルあり

        .ChartTitle.Text = Gakubu & " " & Nendo & "年度 第" & Gakunen & "学年" & " " & Gakki & " " & "GPA分布"    ' グラフタイトル

        .ChartTitle.Format.TextFrame2.TextRange.Font.Size = 12  ' グラフタイトルフォントサイズ

        With .SeriesCollection(1)

            .AxisGroup = 2                      ' 柱→2軸

            .Format.Fill.ForeColor.ObjectThemeColor = msoThemeColorAccent3 ' 柱の色→グレー

            .Border.Color = vbWhite             ' 柱の外枠線色→白

            .Border.Weight = xlThin             ' 柱外枠の太さ

        End With

        With .SeriesCollection(2)

            .ChartType = xlXYScatter            ' 最大度数→散布図へ

            .MarkerStyle = xlMarkerStyleNone    ' マーカーを不可視に

        End With

        With .Axes(xlCategory)

            .MinimumScale = Tmp(2)              ' 軸スケール合わせ(最小値)

            .MaximumScale = Tmp(3)              ' 軸スケール合わせ(最大値)

            .MajorUnit = Tmp(1)                 ' 軸スケール合わせ(目盛り)

            .CrossesAt = Tmp(2)                 ' 軸スケール合わせ(交点)

        End With

        With .Axes(xlCategory, xlPrimary)

            .HasTitle = True                    ' x軸タイトルを表示する

            .AxisTitle.Characters.Text = "GPA"  ' x軸タイトル

        End With

        With .Axes(xlValue, xlPrimary)

            .HasTitle = True                    ' y軸タイトルを表示する

            .AxisTitle.Characters.Text = "人数" ' y軸タイトル

        End With

        With .Axes(xlValue, xlSecondary)

            .TickLabelPosition = xlNone         ' 2軸ラベルを不可視に

            .MajorTickMark = xlNone             ' 2軸目盛を不可視に

        End With

        .Parent.Top = Range("K3").Top           ' 位置調整(上端)

        .Parent.Left = Range("K3").Left         ' 位置調整(左端)

    End With



      With Worksheets(shname).PageSetup         ' シートを1ページに印刷する設定

        .Orientation = xlLandscape

        .Zoom = False

        .FitToPagesTall = 1

        .FitToPagesWide = 1

    End With



    Range("K2").Value = "▼ヒストグラム"        ' ヒストグラム箇所がわかるように表示



    ' 累積頻度表の作成

    Cells(3, 8).Value = "累積頻度"

    Cells(3, 9).Value = "GPA"

    Range("H3:I3").HorizontalAlignment = xlCenter

    Range("H3:I3").Interior.ColorIndex = 15

    j = 1

    For i = 1 To n

            If Sheets("sheet1").Cells(i, 6).Value <= 0.27 And Sheets("sheet1").Cells(i, 6).Value >= 0.23 Then

               Cells(3 + j, 8).Value = Sheets("sheet1").Cells(i, 6).Value

               Cells(3 + j, 9).Value = Sheets("sheet1").Cells(i, 5).Value

               j = j + 1

               Range(Cells(3, 8), Cells(3 + j - 1, 9)).Borders.LineStyle = True

            End If

    Next i



    Range(Cells(3, 8), Cells(3 + j - 1, 9)).Sort Key1:=Range("H4"), Order1:=xlAscending, Header:=xlYes



    ' GPA下位25%以下の人数表の作成

    Range("K16").Value = "▼GPA下位25%以下の人数"       ' GPA下位25%以下の人数表箇所がわかるように表示



    With Range("L17:N17")                               ' セルの結合

        .Merge

        .HorizontalAlignment = xlCenter

        .ShrinkToFit = True

    End With

    With Range("L18:N18")                               ' セルの結合

        .Merge

        .HorizontalAlignment = xlCenter

        .ShrinkToFit = True

    End With

     Cells(17, 11).Value = "総数"

     Cells(17, 12).Value = "GPA下位25%以下の人数"

     Cells(18, 11).Value = WorksheetFunction.Count(Target)                  ' sheet1GPA欄に入力された数を表示

     Cells(18, 12).Value = WorksheetFunction.CountIf(Target2, "<= 0.25")    ' sheet1順位欄の0.25以下の数を表示

     Range(Cells(17, 11), Cells(18, 14)).HorizontalAlignment = xlCenter     ' セルの中央ぞろえ

     Range(Cells(17, 11), Cells(18, 14)).Borders.LineStyle = True           ' 罫線を引く

     Range("K17:N17").Interior.ColorIndex = 15                              ' 見出しの背景に着色



     Application.ScreenUpdating = True



    Exit Sub



Error:  ' エラー処理



   If ActiveSheet.Name = shname Then

        Application.DisplayAlerts = False

        ActiveSheet.Delete

        Application.DisplayAlerts = True

    End If



   MsgBox "エラーが発生しましたので終了します。エラー内容:" & Err.Description



End Sub



Sub DateClear() ' データ消去



    Range("B2:B5").ClearContents

    Range("E:F").ClearContents



End Sub



Sub SheetDelete()   ' アクティブなシート以外を消去



    Dim sh As Worksheet



    With Application

        .DisplayAlerts = False

        For Each sh In Worksheets

            If sh.Name <> ActiveSheet.Name Then

            sh.Delete

            End If

        Next

        .DisplayAlerts = True

    End With



End Sub
